van khí nén TAC-3P-1/4" KOGANEI
Giá : Liên hệ
Tình trạng : AVAILABLE
Mã sản phẩm :
Nhà cung cấp : TOAN THINH PHAT Corporation
Dịch vũ hỗ trợ : Đang cập nhật

AC -2P / 3P / 4P / 4PP KOGANEI Basic Air TAC Valve Push Button Type

Ordering Code: TAC-2P, TAC-3P, TAC-4P, TAC-4PP, TAC-31P, TAC-41P, TAC-41PP, TAC-3V, TAC-3VR, TAC-4V, TAC-4VR, TAC-4PPX, TAC-31V, TAC-41V, Any other types please contact freely.



Description
TAC, a compact device for total pneumatic control, derives its acronym from the expression Tiny Air Components for Total Air Control. The TAC series offers compact valves, virtually all of the necessary peripheral devices for the operation of small air cylinders and the easy configuration of simple pneumatic circuits.


Specifications

Items

TAC-

2P

TAC-

3P

TAC-

4P

TAC-4PP
Operation type

Push button

spring return

Double push
button

holding type

Number of ports 2(Normally closed)

3(Normally

closed)

5
Port size M5X0.8
Media Air
Operating pressure range 0.9 Mpa
Proof pressure 1.35 MPa

Operating temperature

range

0~60 ℃
Effective area 1.8 mm2 2.5 mm2
Flow coefficient 0.08 Cv 0.12 Cv
Mounting direction Any

Maximum operating

frequency

5 Hz
Valve stroke 2.4 mm
Lubrication Required
Mass 35 g 30 g 66 g 71 g
Standard accessories 1 pcs. Each

2 pcs.

Each

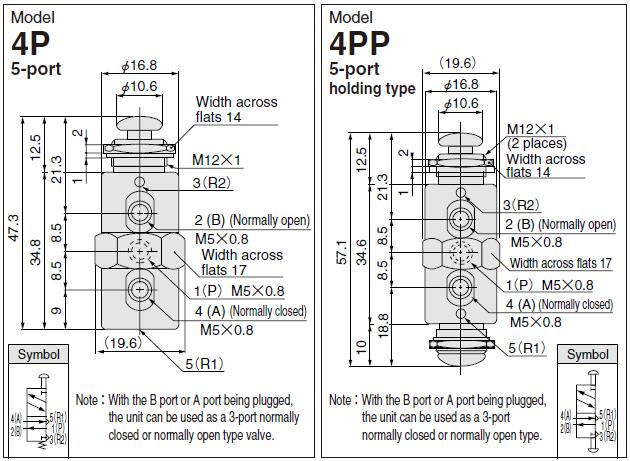

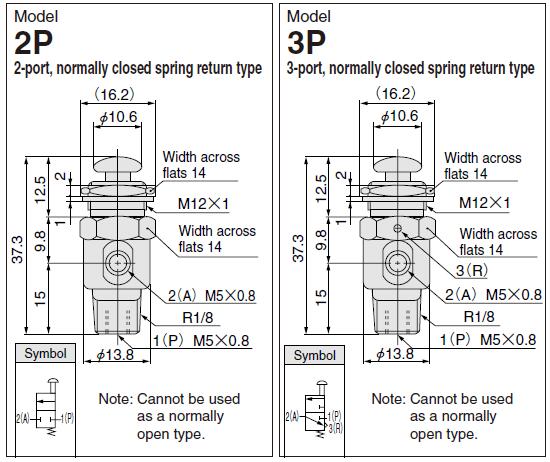

Dimensions

TAC -2P / 3P / 4P / 4PP KOGANEI Basic Air TAC Valve Push Button TypeTAC -2P / 3P / 4P / 4PP KOGANEI Basic Air TAC Valve Push Button Type

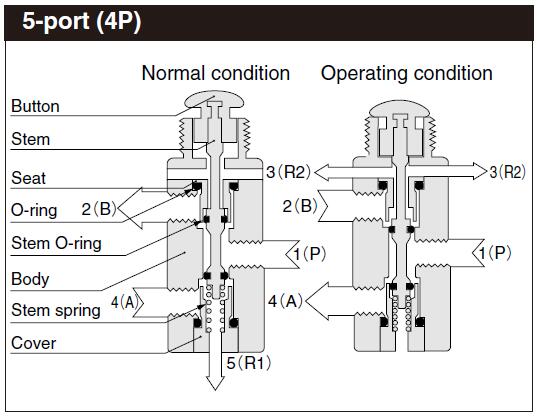

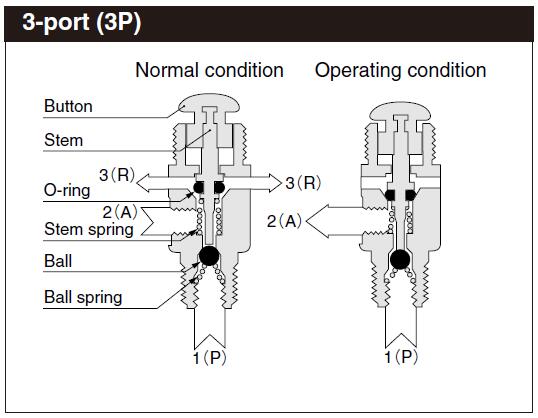

Operating principle

TAC -2P / 3P / 4P / 4PP KOGANEI Basic Air TAC Valve Push Button TypeTAC -2P / 3P / 4P / 4PP KOGANEI Basic Air TAC Valve Push Button Type
